Two power levels
450 W for YJ-PX905 and 900 W for YJ-PX9010.
Compact 450 W / 900 W portable X-ray

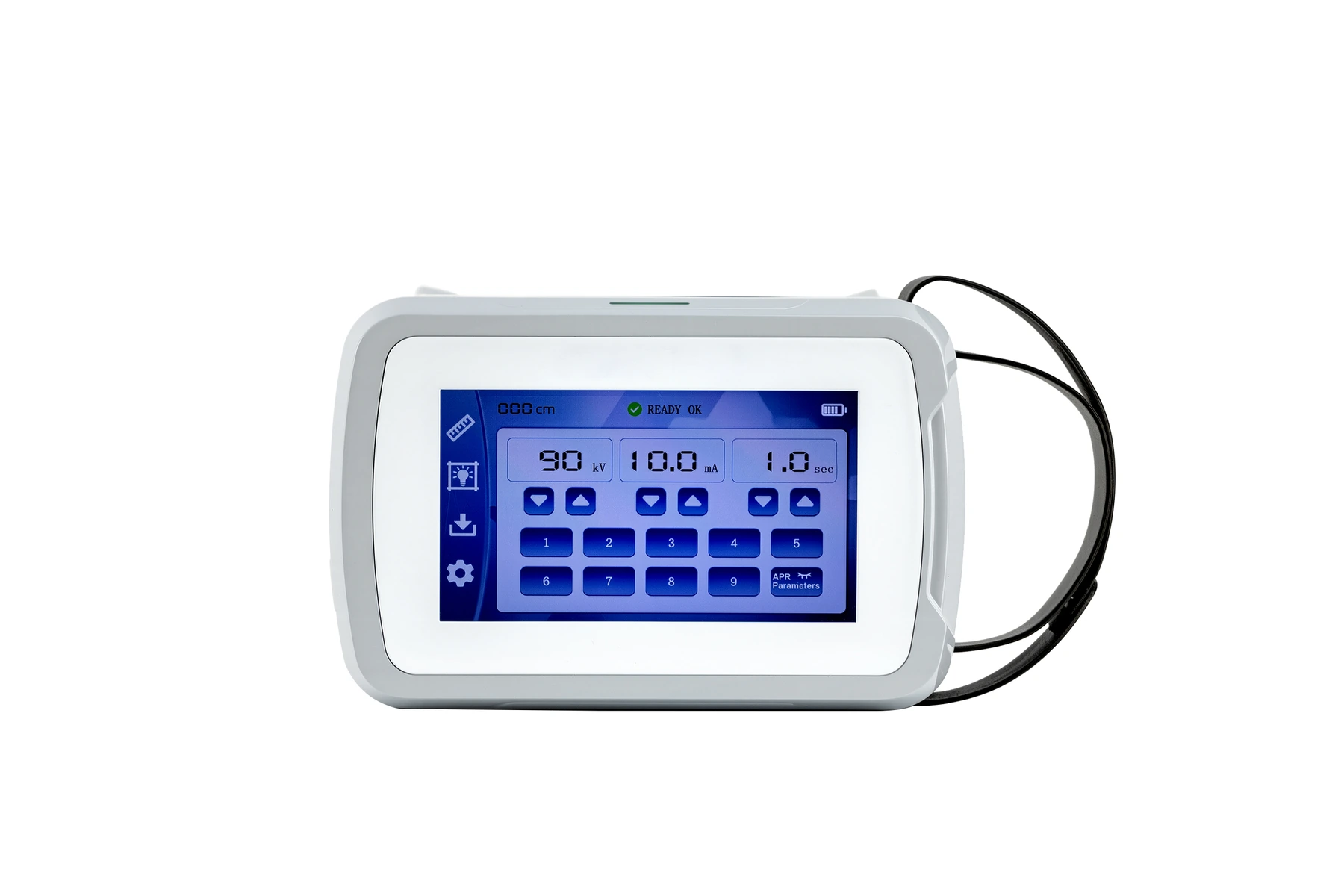

YJ-PX905 & YJ-PX9010 Portable X-ray Series
A compact portable X-ray series with 450 W and 900 W variants, battery power and support for human or animal imaging workflows.
- 450 / 900 WTwo power levels
- 40-90 kVVoltage range
- 3.5 / 3.8 kgWeight
- BatteryPower supply method
Full specification
Before order
Image processing, support bracket and built-in computer are optional features; confirm the selected configuration.
Model YJ-PX905 / YJ-PX9010
Compact 450 W / 900 W seriesBattery-powered portable X-ray for human and animal use

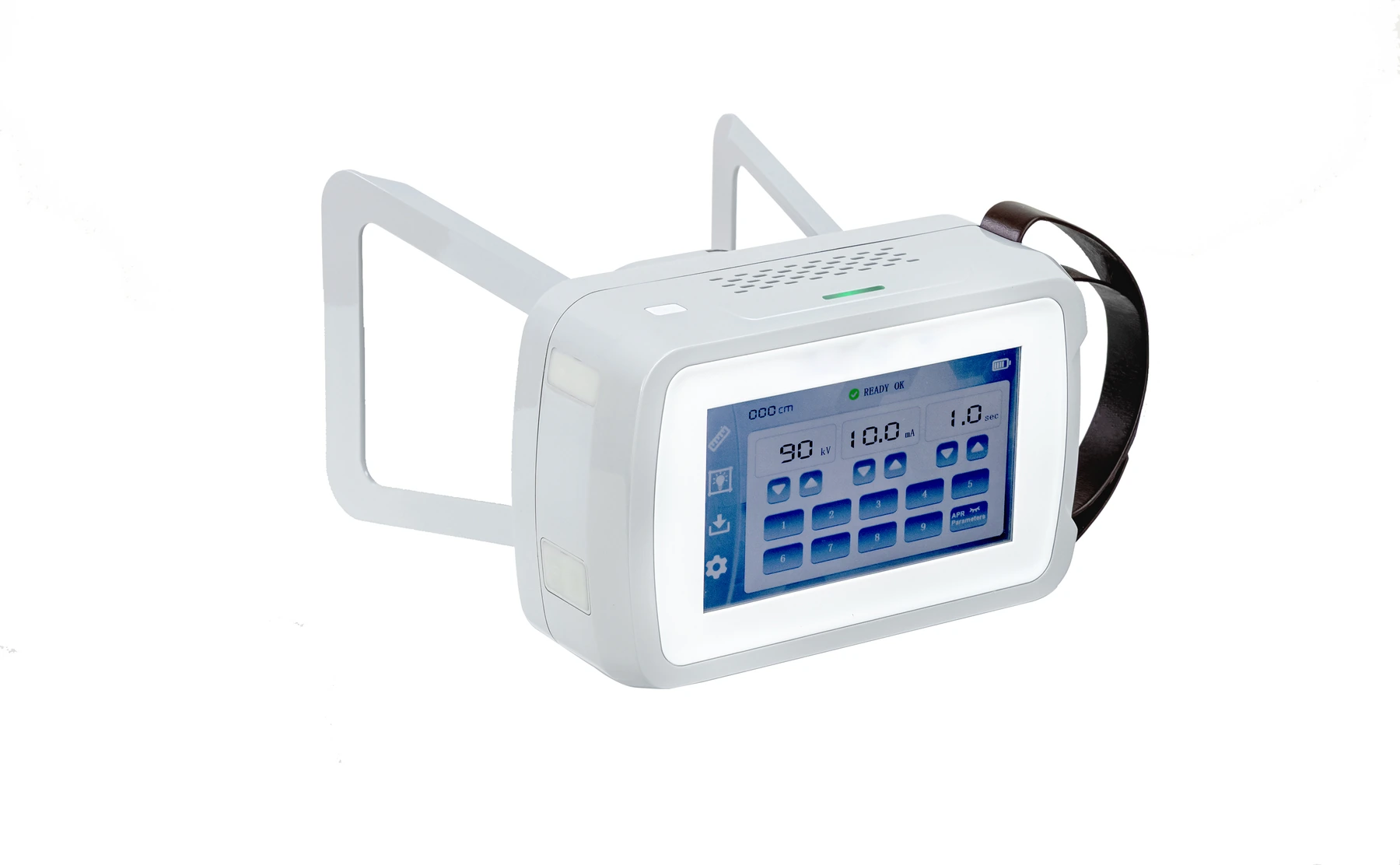

Model views
Compact portable X-ray for multiple applications.
The supplied materials describe emergency, operating room, sports medicine, orthopedics, ICU, nursing home, ambulance, field and veterinary use.
Key features
Small format with application flexibility.
Use the model comparison below to choose the power level for the workflow.
Battery powered
Both models use battery power.
Human and animal use
The supplied description applies to human and animal imaging.
Optional workflow features
Exposure handswitch, adjustable support bracket and built-in computer are optional.
Specification summary
YJ-PX905 and YJ-PX9010 comparison.
Values are taken from the supplied portable X-ray brochure.
Model comparison
| Model | YJ-PX905 / YJ-PX9010 |
|---|---|
| Power | 450 W / 900 W |
| kV | 40-90 kV / 40-90 kV |
| mA | 0.5-5 mA / 1-10 mA |
| Exposure time | 0.1-2 s / 0.1-2 s |
| Cooling time | 30x exposure time / 60x exposure time |
| Focal spot | 0.8 / 0.8 |
| Anode heat capacity | 7000 J / 7000 J |
| Total filtration | 1.8 mm Al / 1.8 mm Al |
| Power supply | Battery / Battery |
| Remote exposure | RJ11 / RJ11 |
| Size | 225 x 155 x 263 mm / 225 x 155 x 263 mm |
| Weight | 3.5 kg / 3.8 kg |
| Working temperature | -10 to 40 degrees C |
Confirm before order
Final specifications, options and regulatory scope must be confirmed against the quotation and destination market.
Need this model for your market?
Send the application, quantity and compatibility details.
We will review the project, accessories, documents and market requirements before confirming the quotation.
