8 kW storage portable X-ray

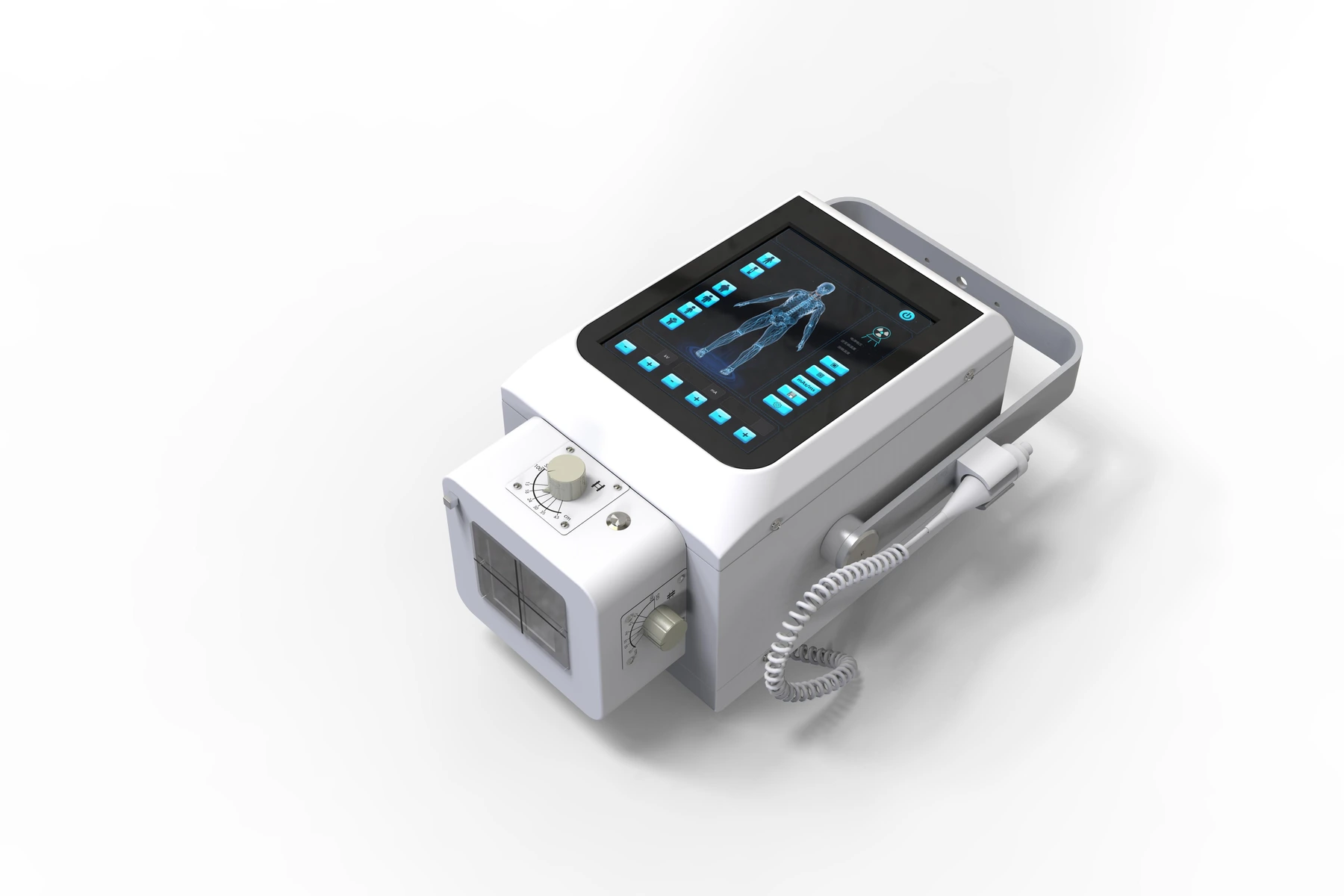

YJ-PX8B 8 kW Storage Portable X-ray System

An 8 kW storage portable X-ray system with wired or wireless exposure, a 10.4-inch display and a compact 18 kg control unit.

  • 8 kWPower output
  • 40-125 kVVoltage range
  • 10-160 mACurrent range
  • 18 kgWeight
Before order

Confirm battery system, detector, support and accessories for the final project.

YJ-PX8B 8 kW Storage Portable X-ray System
Model YJ-PX8B
Storage portable X-ray8 kW output and wired/wireless exposure
Model views

Storage power in a portable format.

Large-capacity storage, fast charging and multiple exposure modes support mobile rounds.

Key features

Designed for field and bedside use.

The storage configuration supports use across hospitals, clinics, nursing homes and field environments.

01

8 kW storage platform

High-power storage portable X-ray machine.

02

Wired or wireless exposure

Wired and wireless exposure modes are both supported.

03

10.4-inch screen

Large touchscreen for operation and image review.

04

Fast charge and battery life

Fast charging and long battery life support repeated bedside examinations.

Specification summary

YJ-PX8B specification summary.

Values are taken from the supplied 8 kW storage X-ray brochure.

System and generator

ModelYJ-PX8B / PO8RE
Power8 kW
Voltage40-125 kV
mA range10-160 mA
mAs range0.1-200 mAs
CommunicationRS232
Exposure modeWired or wireless
Focal spot0.6 / 1.8 mm
Anode angle15 degrees

Collimator and mechanics

Collimator powerAC/DC 24 V, plus or minus 10%
Light sourceLED, 5 W
Light delay30 plus or minus 2 seconds
IlluminationAt least 160 lux
Intrinsic filtration1.2 mm Al at 75 kV
Dimensions240 x 220 x 524 mm
Weight18 kg
Confirm before order

Final specifications, options and regulatory scope must be confirmed against the quotation and destination market.
