Compact portable X-ray

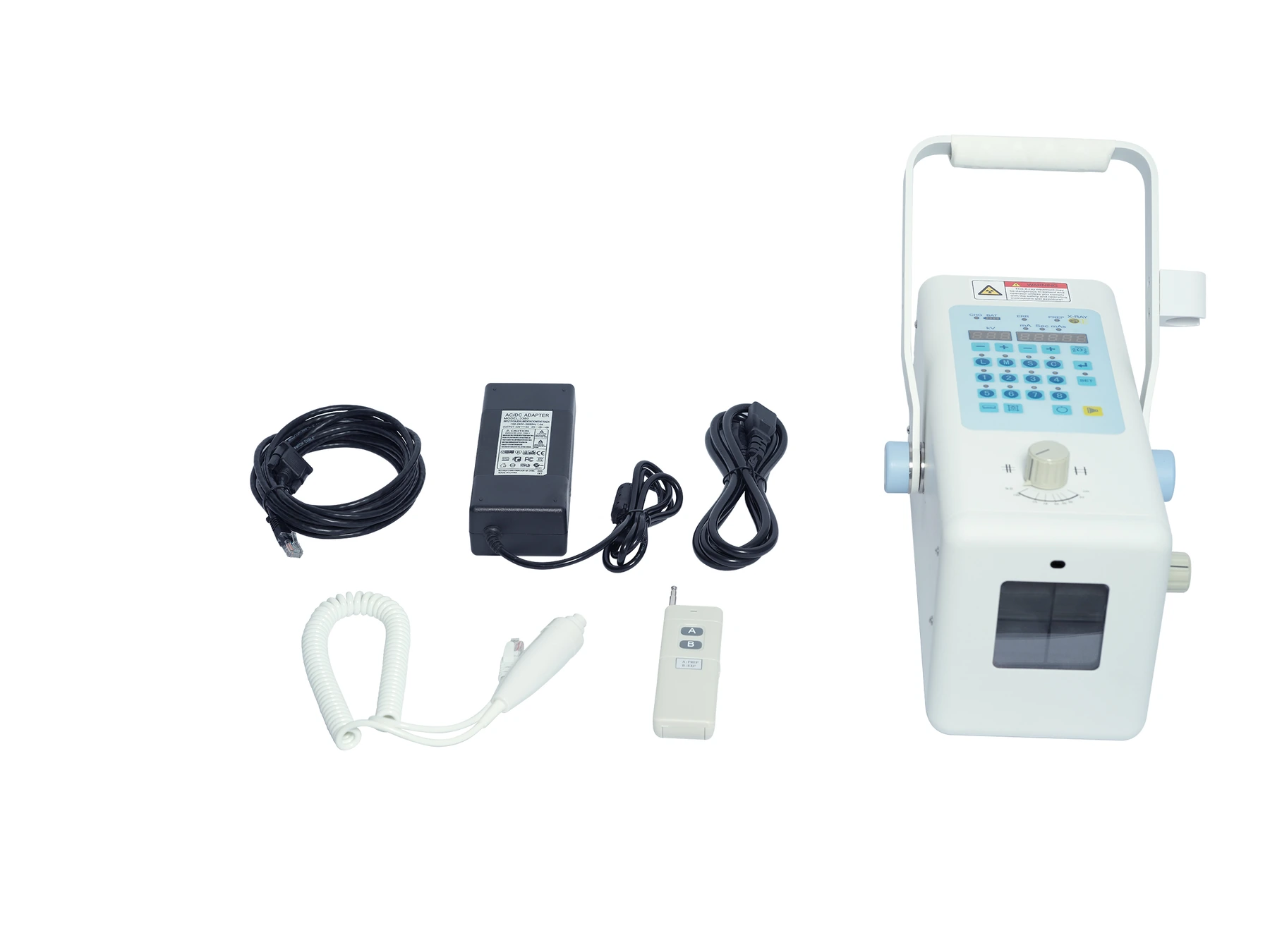

YJ-PX1.8B Portable X-ray System

A 1.8 kW portable X-ray system with a detachable lithium battery, built-in collimator and laser ranging for clinic, bedside and field radiography.

  • 1.8 kWOutput power
  • 40 - 90 kVkV range
  • 0.1 - 16 mAsmAs range
  • 9 kgNet weight
Before order

Confirm the exact generator output, detector pairing, exposure control and stand configuration before order.

YJ-PX1.8B Portable X-ray System
Model YJ-PX1.8B
Compact handheld systemPortable control unit and stand options

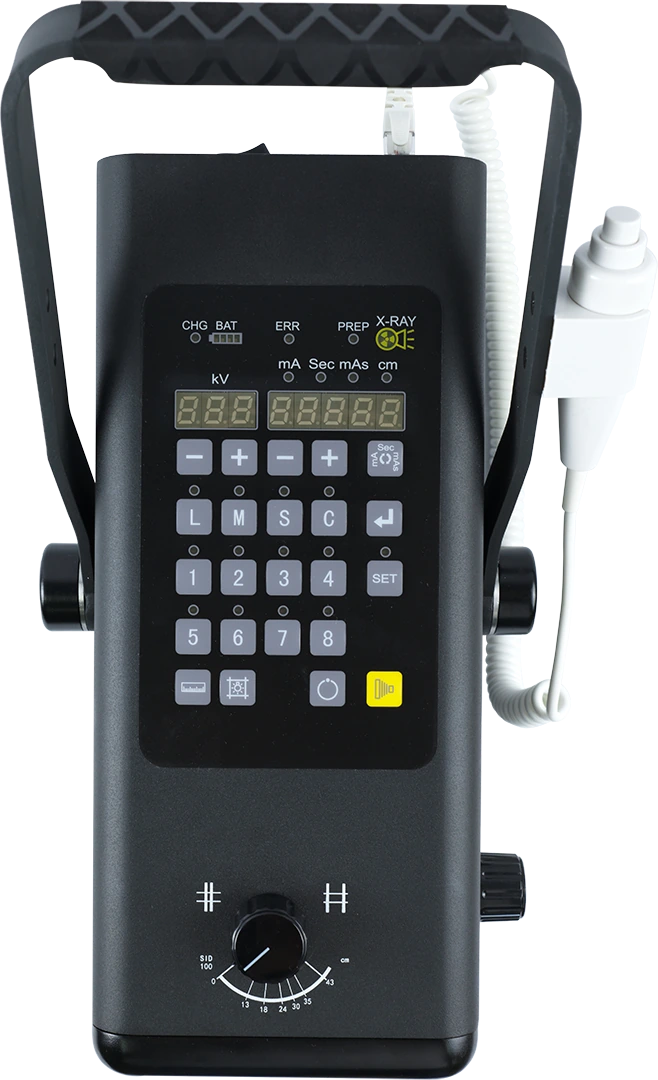

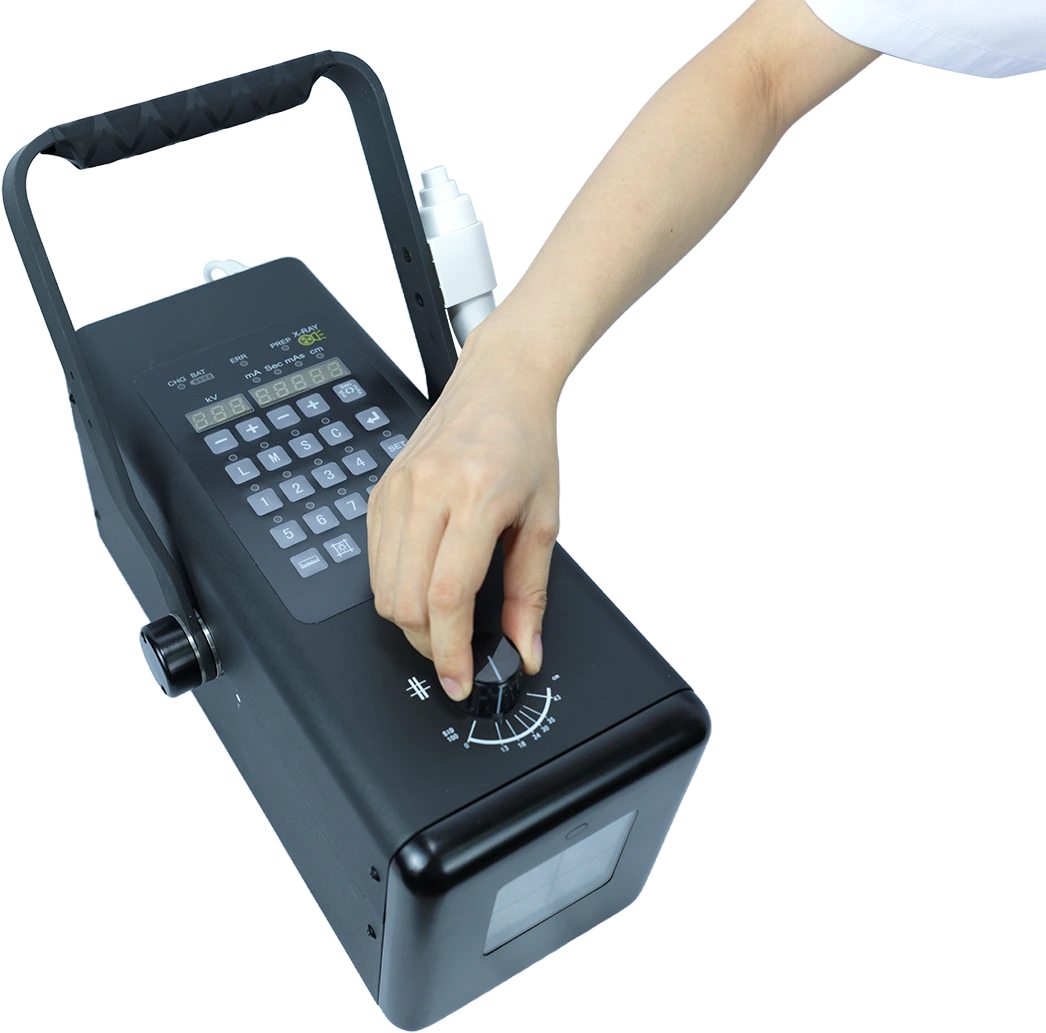

Model views

Compact portable configurations.

The supplied images show the control unit and portable positioning options.

Key features

Compact generator with battery and laser aiming.

Built for bedside rounds, small clinics and field use where portability matters.

01

1.8 kW generator

High-frequency output with a 40 - 90 kV range and 2 - 40 mA, working frequency up to 600 kHz.

02

Detachable battery

Detachable lithium battery provides about 300 exposures per charge.

03

Built-in collimator

Integrated collimator keeps the head compact and ready for use.

04

Laser ranging

Laser-assisted positioning sets the source-to-image distance quickly.

Specification summary

YJ-PX1.8B technical parameters.

Generator, power and handling parameters for the YJ-PX1.8B portable system.

Generator and exposure

ModelYJ-PX1.8B
TypePortable X-ray system
Output power1.8 kW
kV range40 - 90 kV
mA range2 - 40 mA
mAs range0.1 - 16 mAs
Working frequencyUp to 600 kHz
Power adaptability100 - 240 V

Power and handling

BatteryDetachable lithium battery
Battery capacityAbout 300 exposures per charge
CollimatorBuilt-in collimator design
Positioning aidLaser ranging
Net weight9 kg
ConfigurationsHandheld or stand-mounted
Confirm before order

Final specifications, options and regulatory scope must be confirmed against the quotation and destination market.
