High-precision electric following
Closed-loop control supports rack positioning and system debugging.
Floor-mounted digital radiography

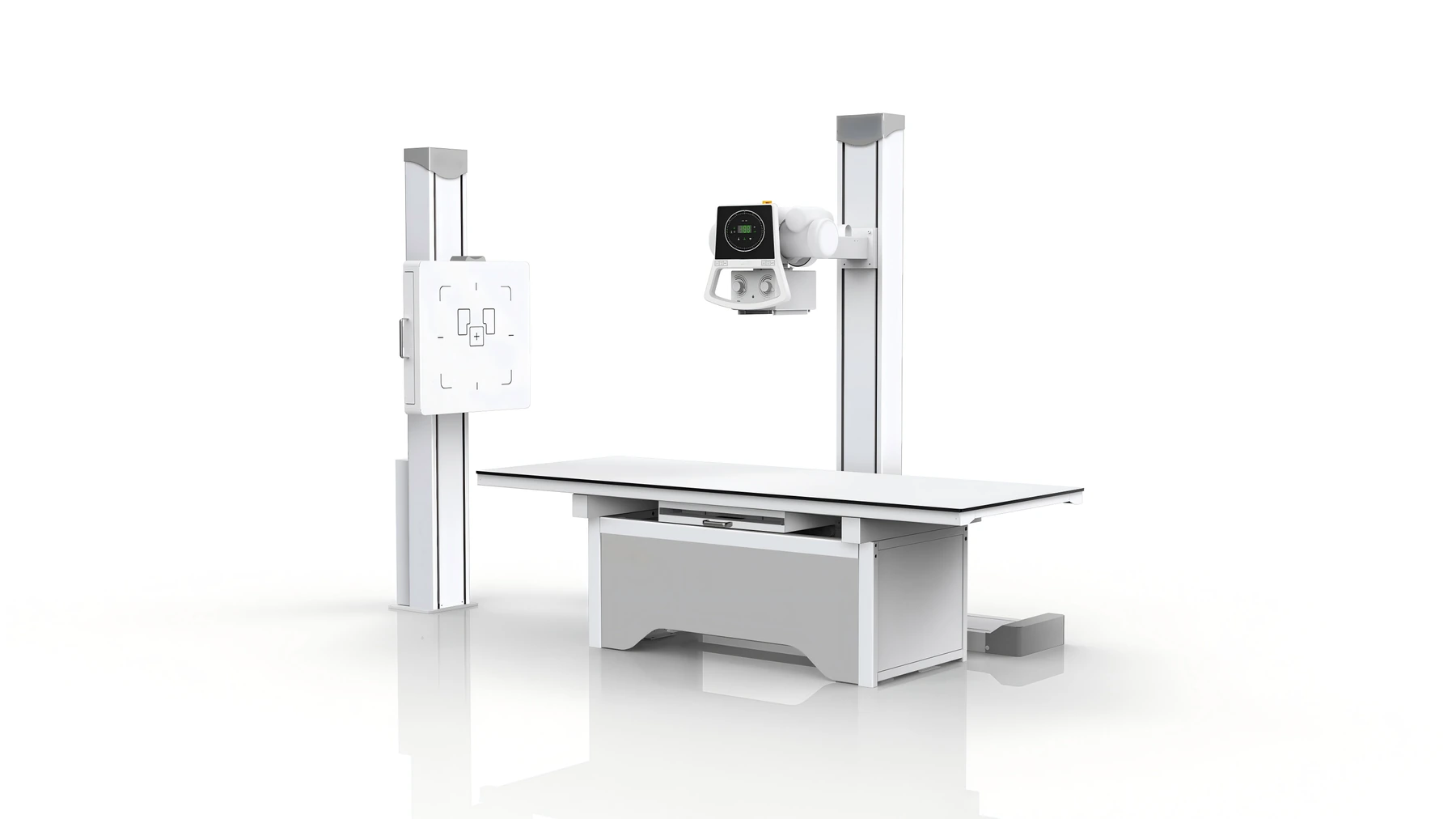

YJ-FDR300-50 Floor-mounted Digital X-ray System
A 50 kW floor-mounted digital radiography configuration with a 17 x 17 inch CsI detector, high-precision electric following, a motorized table and an optional touch-control screen.
- 50 kWGenerator configuration
- 17 x 17 inCsI detector
- 300 kgTable load
- 10.4 inControl panel
Full specification
Before order
The supplied sheet covers the YJ-FDR300 Series. Confirm the final generator output, detector, table and software configuration.
Model YJ-FDR300-50
Digital fixed X-ray roomHigh-precision electric following and 17 x 17 inch detector
Model views
Two table configurations for the same digital room.
The supplied white-background views show fixed-table and mobile-table versions.
Key features
Digital radiography with electric following.
The YJ-FDR300 focuses on easier installation, precise positioning and high-definition imaging.
High-definition imaging
Ten-million-pixel imaging chain with DAP monitoring, AEC exposure and one-click splicing.
Digital control display
Tube and Bucky height, angle and SID distance are shown on the control screen.
Touch-control option
Optional touch screen supports exposure parameters, positioning guidance and image review.
Specification summary
YJ-FDR300-50 specification summary.
Values describe the 50 kW model in the YJ-FDR300 Series.
Generator and tube
| Model | YJ-FDR300-50 |
|---|---|
| Output power | 50 kW |
| Current | 10-630 mA |
| Voltage | 40-150 kV |
| mAs | 0.1-630 mAs |
| Exposure time | 0.002-6.3 s |
| APR program | Equipped |
| Focal spot | 1.0 / 2.0 |
| Anode speed | 2800 rpm at 50 Hz / 3200 rpm at 60 Hz |
| Anode heat storage | 200 kHU |
| Housing heat storage | 1100 kJ |
Detector and table
| Detector type | Amorphous silicon, CsI scintillator |
|---|---|
| Active area | 17 x 17 in (43 x 43 cm) |
| Active pixels | 3072 x 3072 |
| Pixel pitch | 139 micrometers |
| A/D conversion | 16 bit |
| DQE | At least 70% |
| Spatial resolution | 36 lp/cm |
| Acquisition time | 2 seconds or less |
| Table size | 2100 x 816 x 623 mm |
| Table load | 300 kg |
| Table travel | Front/back 120/120 mm; left/right 400/400 mm |
Positioning and workstation
| Tube stand travel | Up/down 60-160 cm; left/right 50-180 cm |
|---|---|
| Tube rotation | -30 to 120 degrees; optional stand rotation -180 to 180 degrees |
| Bucky / FPD cover | 30-190 cm |
| Collimator | Manual; 450 x 450 mm maximum window at 100 cm SID |
| Workstation | 24-inch LCD; CPU 2.8 GHz or higher; memory 4 GB or higher; HDD 1 TB or higher |
| Software | Multiple languages, APR positions, DICOM 3.0, RIS/PACS/printer connection |
| Environment | 10-40 degrees C; 30-75% RH; 70-106 kPa |
Confirm before order
Final specifications, options and regulatory scope must be confirmed against the quotation and destination market.
