Freestanding installation
The floor-mounted design accommodates rooms where ceiling-mounted equipment is not practical.
Floor-mounted analog X-ray

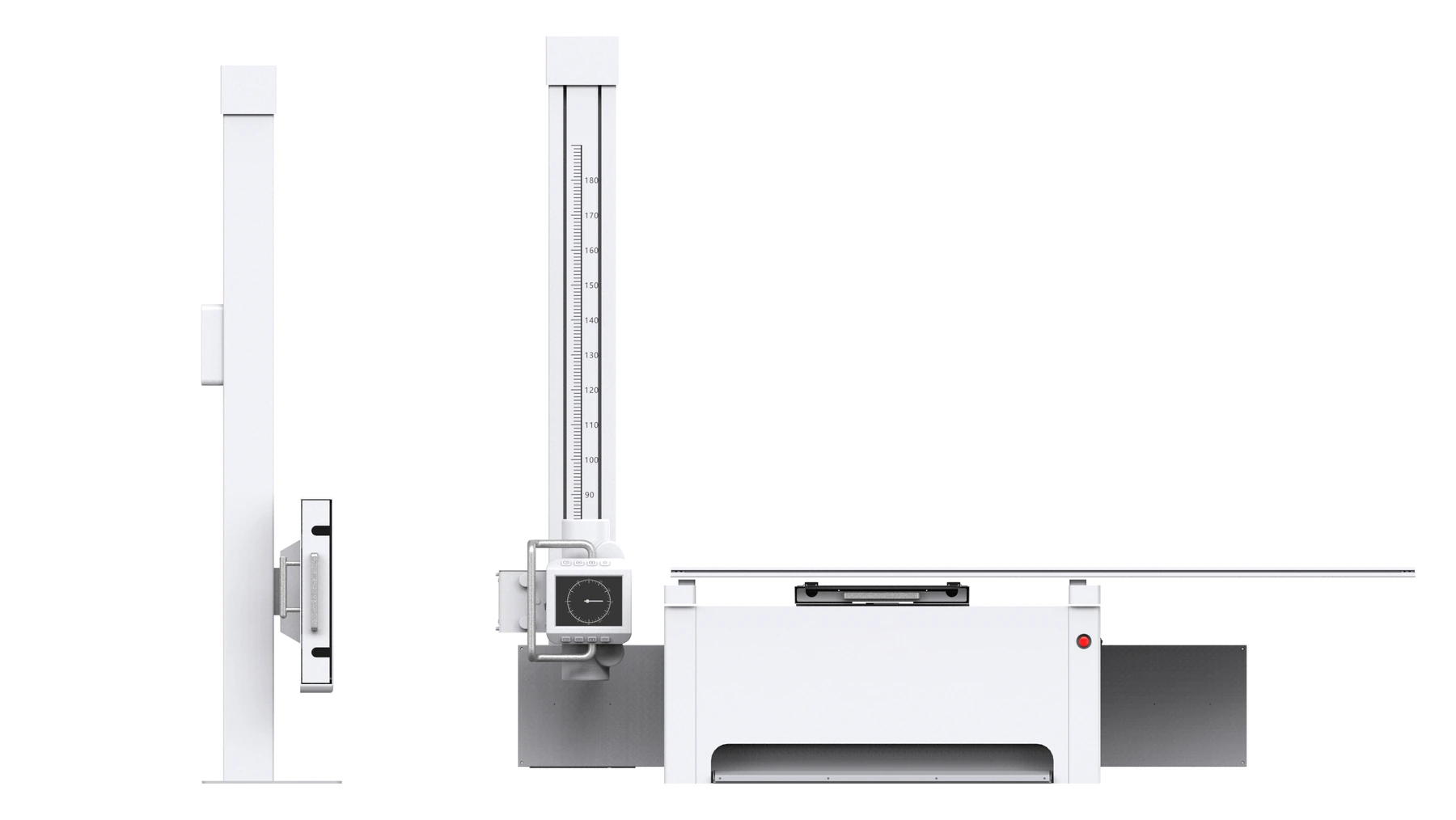

YJ-FDR100U-50 Floor-mounted Analog X-ray System
A freestanding floor-mounted analog X-ray room with a floor table and wall Bucky stand, using a 50 kW generator configuration for general radiography.
- 50 kWGenerator configuration
- 40-150 kVRadiography voltage
- 10-630 mACurrent
- 0.6 / 1.2Focal spots
Full specification
Before order
This model is an analog X-ray system, not a digital detector room. Confirm detector and workflow requirements separately.
Model YJ-FDR100U-50
Floor-mounted analog roomNo ceiling structure required for the stand system

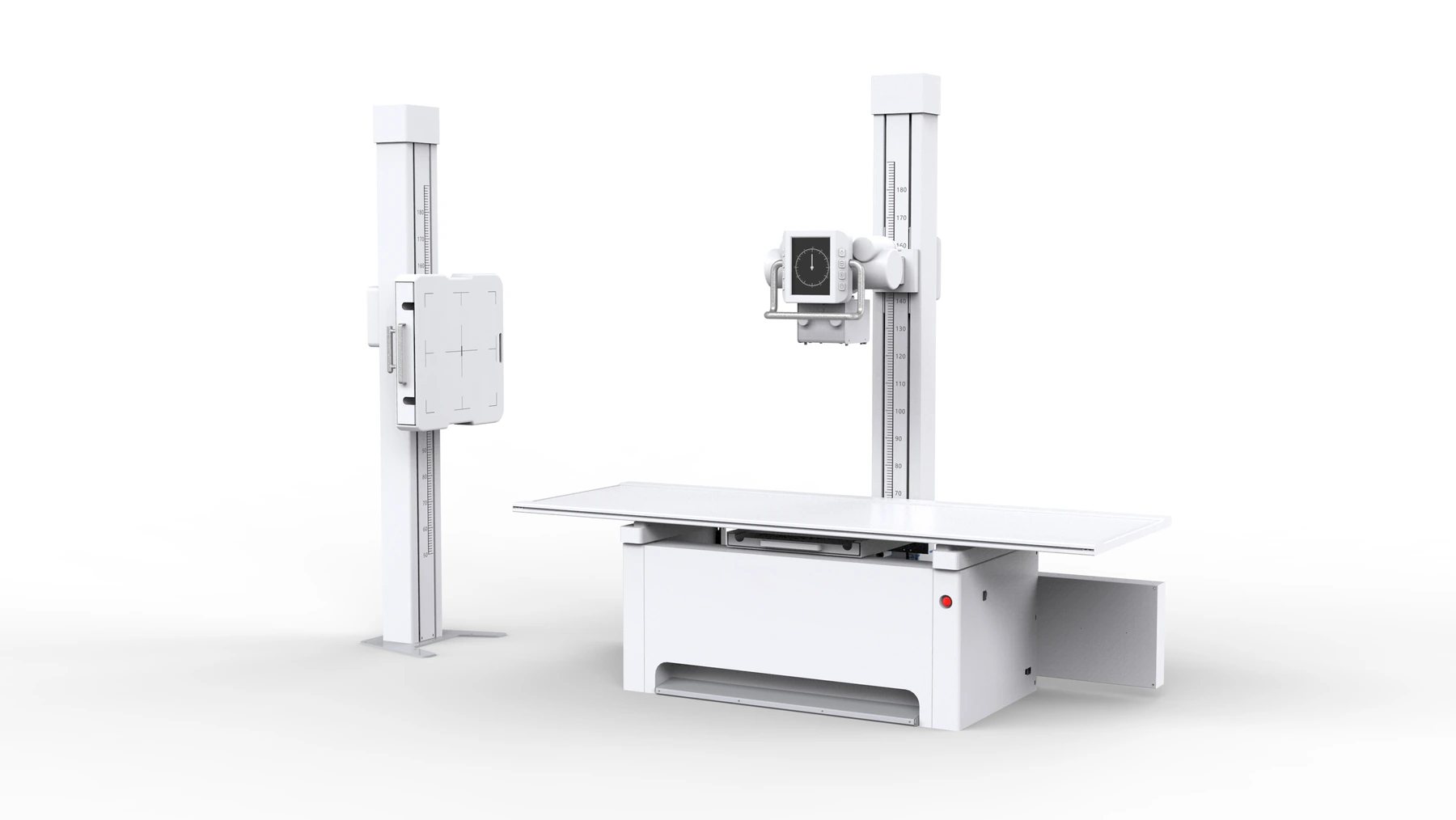

Model views

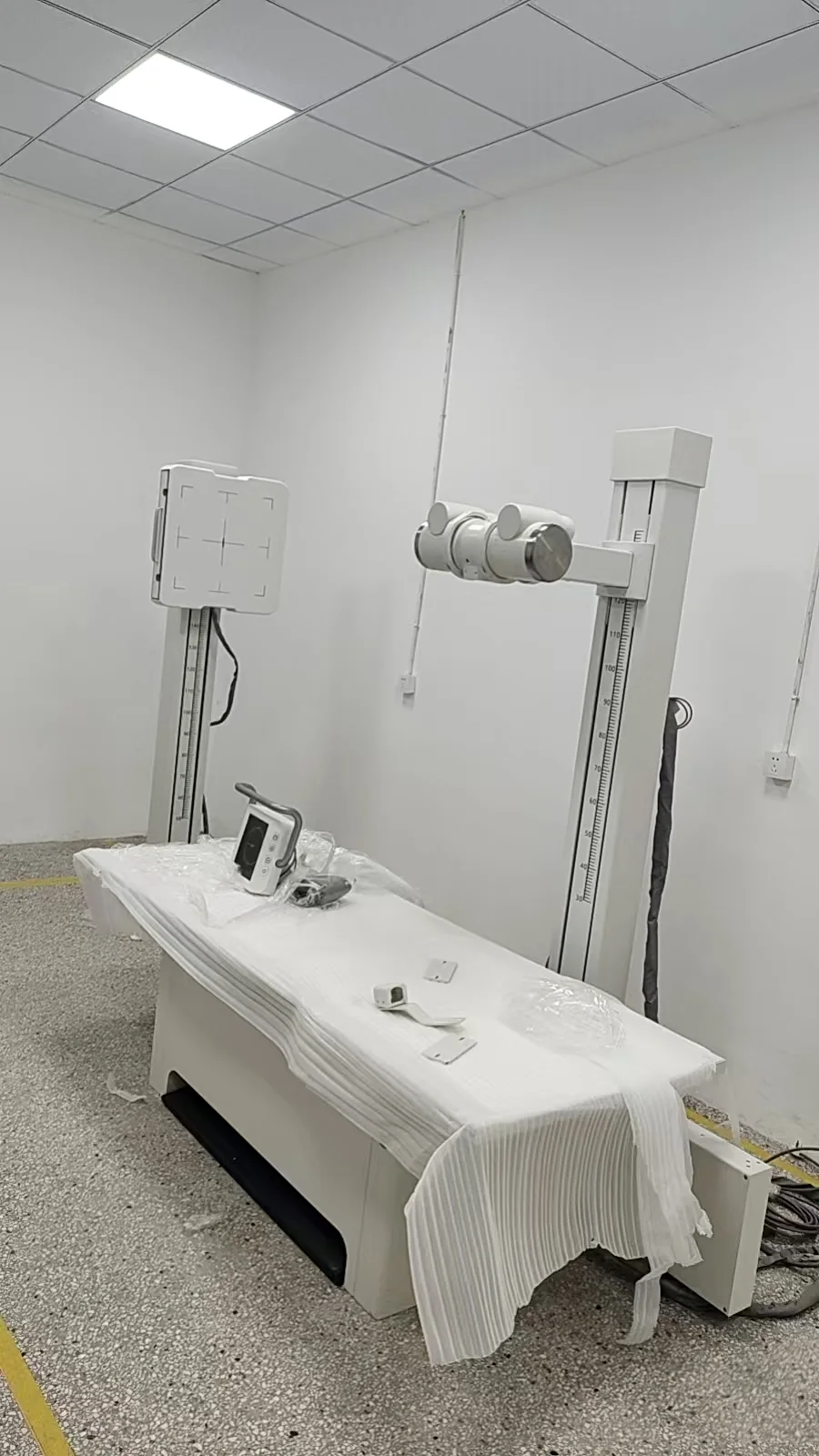

Floor-mounted room layout.
The floor table and wall stand form a freestanding analog X-ray room.
Key features
Flexible positioning without ceiling support.
The supplied configuration focuses on installation simplicity and broad positioning travel.
Wall Bucky stand
Counterbalanced vertical movement, electromagnetic locks and a durable Bucky tray.
Tube head and stand
A dedicated tube-head holder provides smooth vertical movement and reduced mechanical vibration.
Analog workflow
The system is positioned as an analog X-ray room; detector workflow and upgrade requirements must be discussed separately.
Specification summary
YJ-FDR100U-50 specification summary.
Values describe the 50 kW model in the YJ-FA100U series.
System and generator
| Model | YJ-FDR100U-50 / YJ-FA100U-50 series |
|---|---|
| System type | Floor-mounted analog X-ray |
| Output power | 50 kW |
| Current | 10-630 mA |
| Voltage | 40-150 kV |
| mAs | 0.1-630 mAs |
| Exposure time | 1-6300 ms |
| Focal spot | 0.6 / 1.2 |
Mechanical and positioning
| Installation | Freestanding floor-mounted table and wall stand |
|---|---|
| Ceiling support | Not required for the floor-mounted stand system |
| Wall stand travel | Wide vertical range with counterbalanced movement |
| Locking | Electromagnetic locks at selected positions |
| Bucky | Durable tray for cassette flexibility |
| Application examples | C-spine, chest, L-spine, pelvis, hands, foot and knee joint |
Confirm before order
Final specifications, options and regulatory scope must be confirmed against the quotation and destination market.
