Wired workflow
Direct wired connection for fixed DR and OEM integration projects.

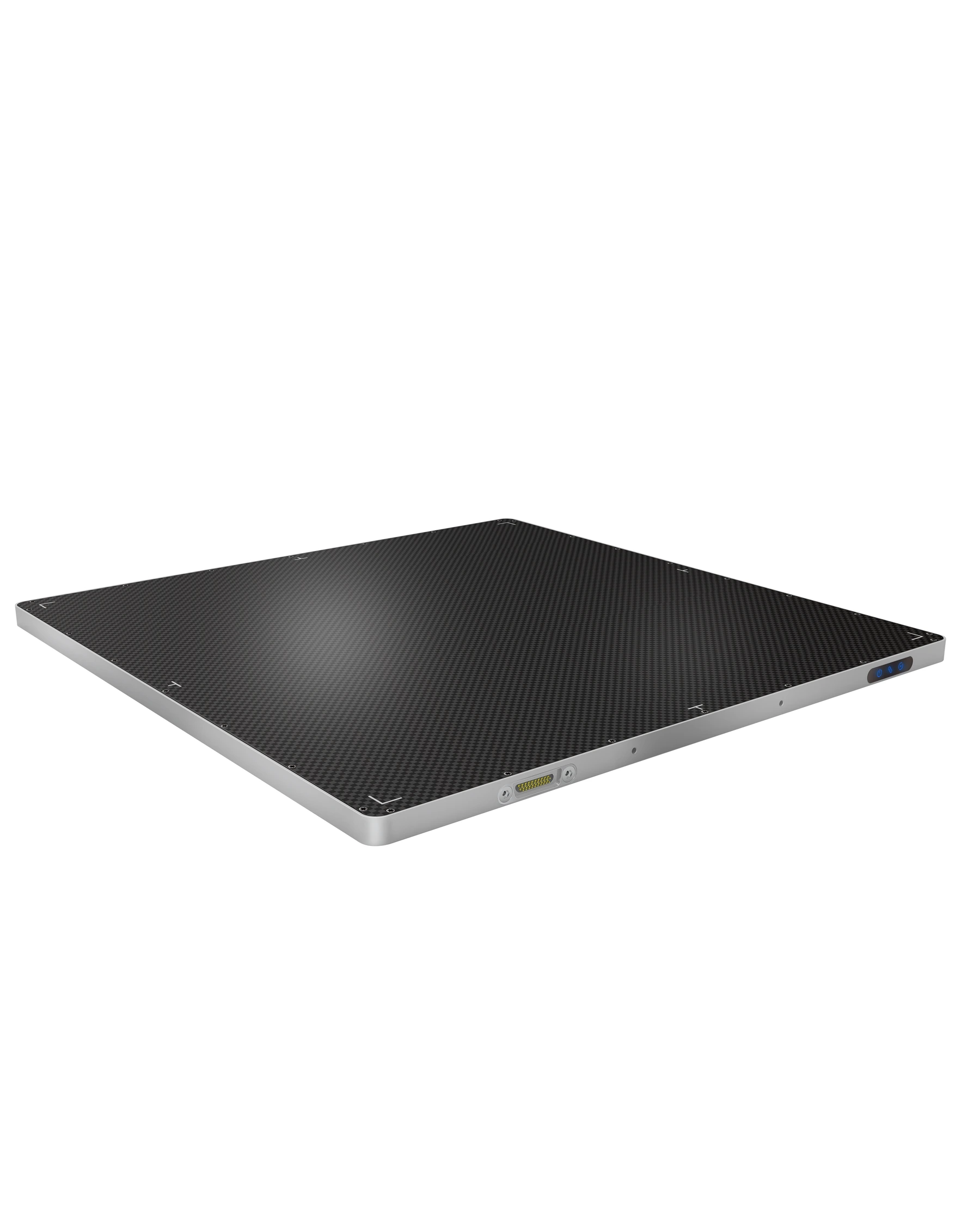

A wired 17 x 17 flat panel detector in the YJ-1717 series, with carbon-fiber housing, aluminum alloy frame and multi-language DR software integration.
Confirm cable type, interface, software and host-system compatibility before order.

Software workflow and optional protection features for the YJ-1717W.



Key detector, housing and workflow features of the YJ-1717W wired model.
Direct wired connection for fixed DR and OEM integration projects.

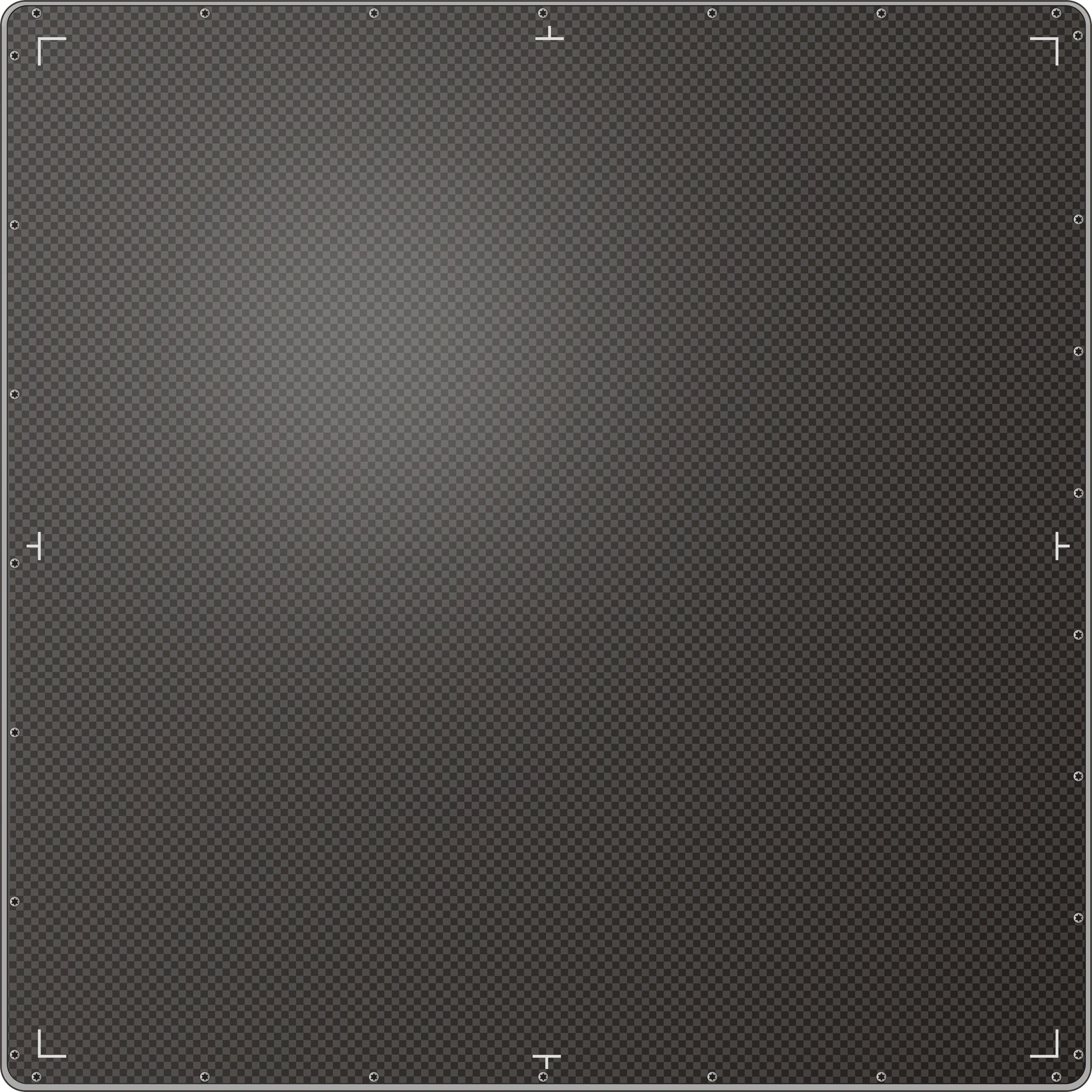

Carbon fiber housing with an aluminum alloy middle frame, load capacity up to 150 kg.
Wired image upload within about 1 second.
Up to nine interface languages with DICOM 3.0 and HL7 support.
Key detector and workflow parameters for the YJ-1717W wired model.
| Model | YJ-1717W |
|---|---|
| Series | YJ-1717 series |
| Type | Wired flat panel detector |
| Active area | 430 x 430 mm |
| Pixel matrix | 3072 x 3072 |
| Pixel pitch | 139 um (100 um optional) |
| Dimension | 460 x 460 x 15 mm |
| Weight | 3.8 kg |
| Scintillator | GOS / CsI:Tl |
| Energy range | 40 - 160 kV |
| Image output | Wired image upload within about 1 s |
|---|---|
| Software | DICOM 3.0 and HL7 support |
| Languages | Up to nine interface languages |
| Housing | Carbon fiber housing, aluminum alloy middle frame |
| Load capacity | Up to 150 kg |
| Host integration | Multi-vendor generator integration |
Final specifications, options and regulatory scope must be confirmed against the quotation and destination market.
