Wireless 17 x 17 detector

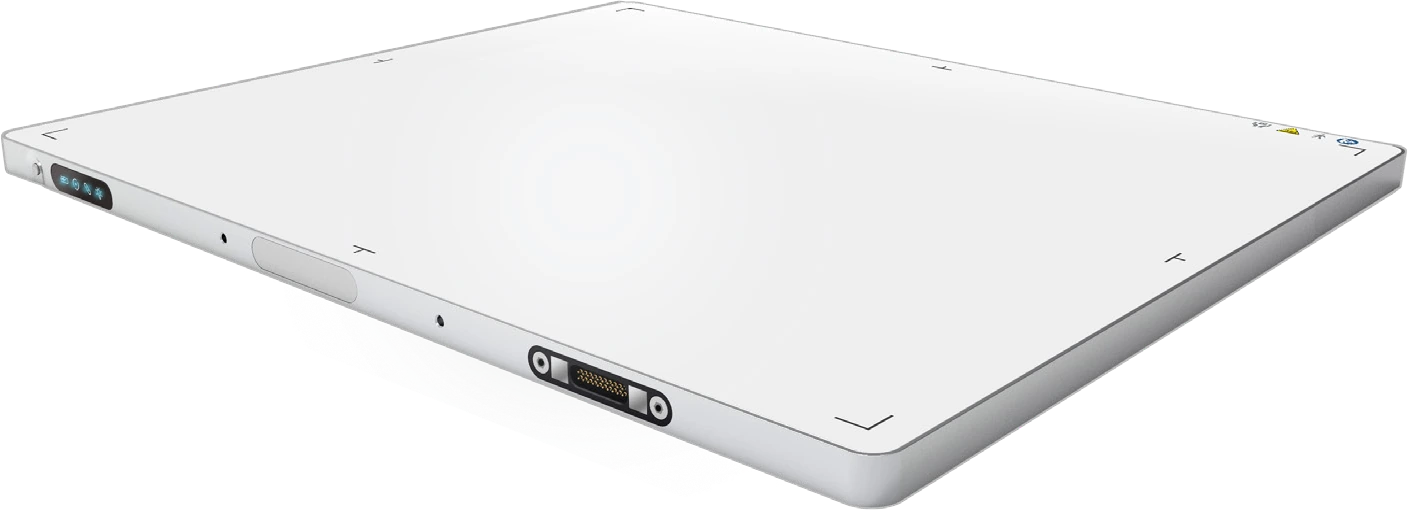

YJ-1717E Wireless Flat Panel Detector

A wireless 17 x 17 flat panel detector in the YJ-1717 series, with carbon-fiber housing, aluminum alloy frame and multi-language DR software integration.

  • WirelessConnection type
  • 430 x 430 mmActive area
  • 3072 x 3072Pixel matrix
  • 3.6 kgDetector weight
Before order

Confirm wireless interface, software licence and host-system compatibility before order.

YJ-1717E Wireless Flat Panel Detector
Model YJ-1717E
Wireless YJ-1717 seriesCarbon-fiber housing and multi-language workflow

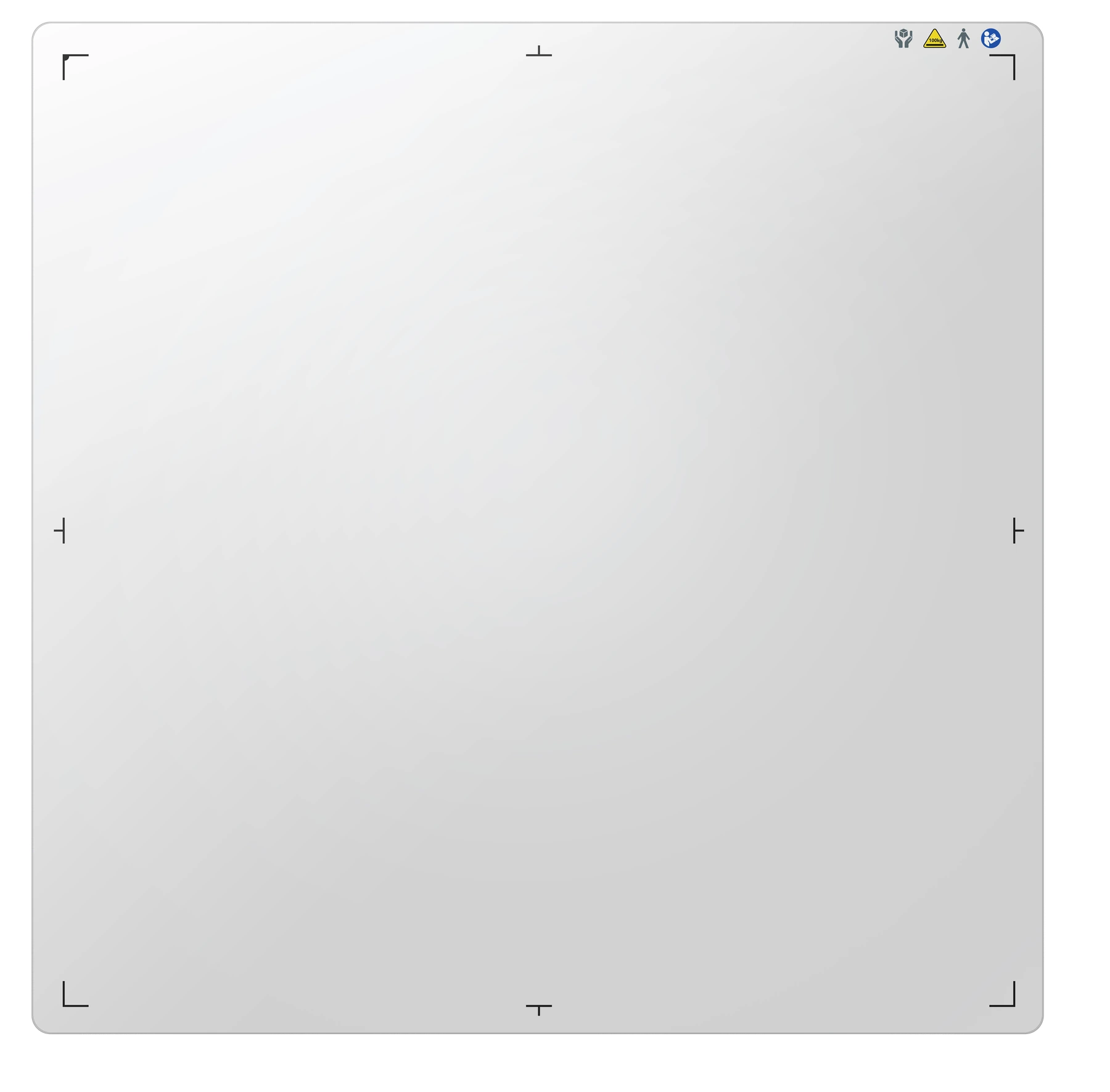

Model views

Wireless YJ-1717 detector views.

Software workflow and optional protection features for the YJ-1717E.

Key features

Wireless detector with a robust series platform.

Key detector, housing and protection features of the YJ-1717E wireless model.

01

Wireless workflow

Wireless DR integration with image upload within about 3 seconds.

02

Robust housing

Carbon fiber housing with an aluminum alloy middle frame, load capacity up to 150 kg.

03

Multi-language software

Up to nine interface languages with DICOM 3.0 and HL7 support.

04

Protection options

1 m drop resistance and IP51 rated; IP67 available as an optional upgrade.

Specification summary

YJ-1717E technical parameters.

Key detector, protection and workflow parameters for the YJ-1717E wireless model.

Detector

ModelYJ-1717E
SeriesYJ-1717 series
TypeWireless flat panel detector
Active area430 x 430 mm
Pixel matrix3072 x 3072
Pixel pitch139 um (100 um optional)
Dimension460 x 460 x 15 mm
Weight3.6 kg
ScintillatorGOS / CsI:Tl
Energy range40 - 160 kV

Protection and workflow

Drop test1 m drop resistance (optional)
Waterproof ratingIP51; IP67 available as an optional upgrade
Image outputWireless image upload within about 3 s
SoftwareDICOM 3.0 and HL7 support
LanguagesUp to nine interface languages
Host integrationMulti-vendor generator integration
Confirm before order

Final specifications, options and regulatory scope must be confirmed against the quotation and destination market.
