Wired 17 x 17 FPD

Venv1717X Wired Flat Panel Detector

A wired 17 x 17 flat panel detector family with a direct cable connection, front and rear views and an imaging example from the supplied materials.

  • WiredConnection type
  • 427 x 427 mmActive area
  • 3072 x 3072Pixel matrix
  • 4.0 kgDetector weight
Before order

Confirm cable type, GigE interface, software and host-system compatibility before order.

Venv1717X Wired Flat Panel Detector
Model Venv1717X
Wired 17 x 17 detectorDirect connection for fixed DR and OEM integration

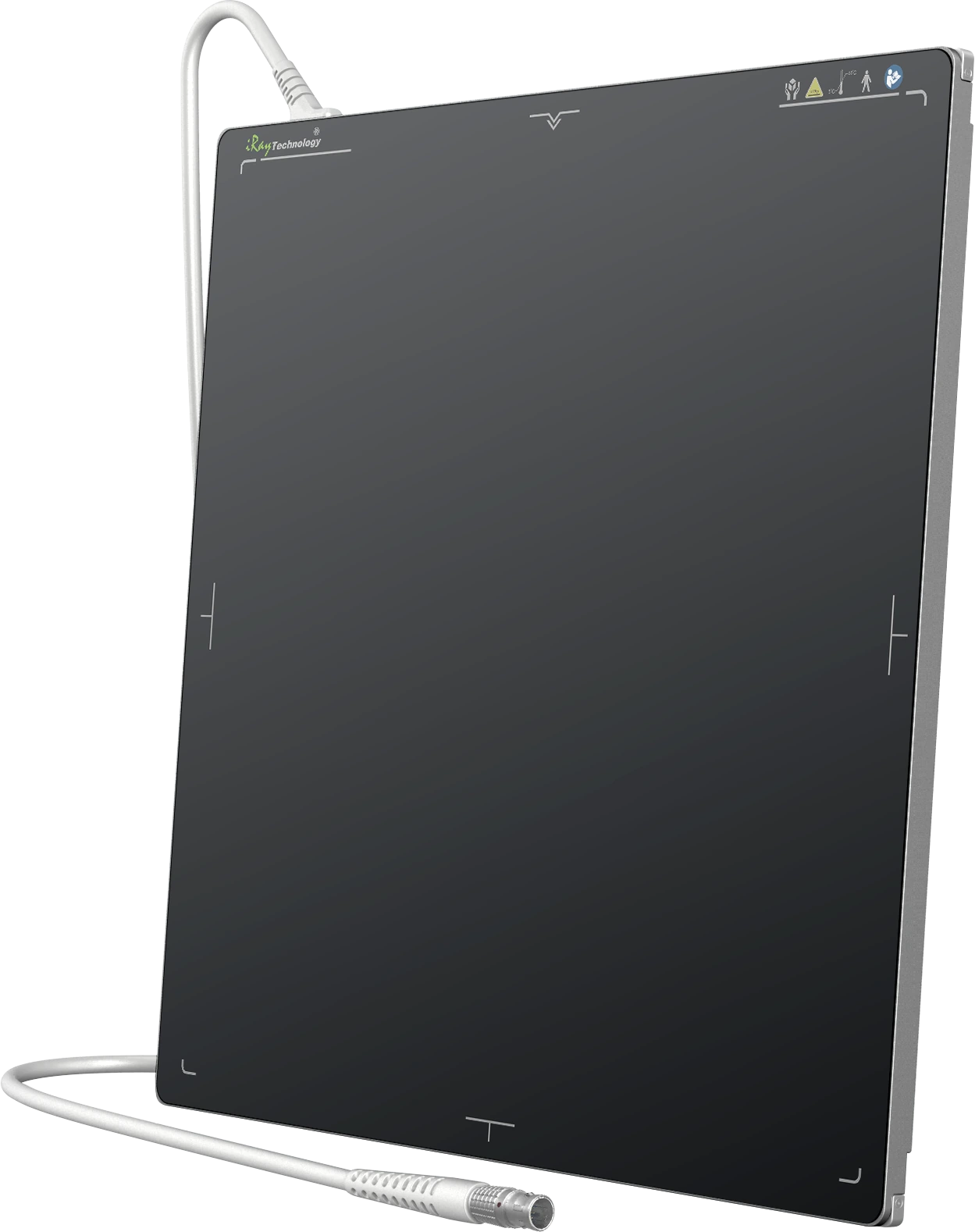

Model views

Wired detector views.

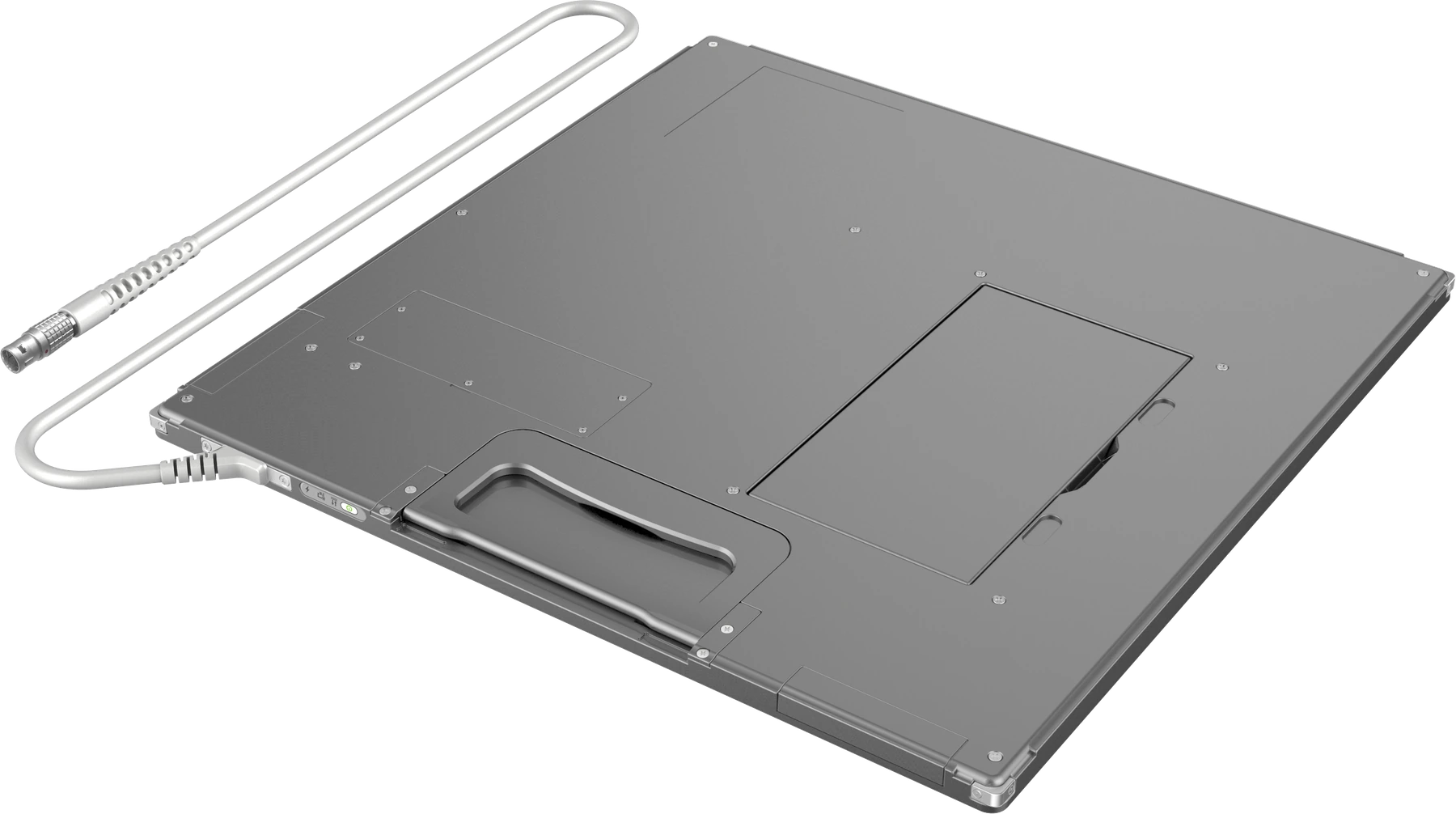

The supplied materials show the panel, rear connection area and an imaging example.

Key features

Wired imaging for fixed and OEM systems.

Cable connector and software compatibility are confirmed by project.

01

GigE data link

Gigabit Ethernet transmission for fixed DR and OEM integration.

02

Fast image output

3 s preview image time and 5 s full image time.

03

High-definition imaging

139 um pixel pitch and 3.6 lp/mm spatial resolution.

04

Slim cassette format

460 x 460 x 15 mm housing for table and upright bucky work.

Specification summary

Venv1717X technical parameters.

Key detector, interface, mechanical and environmental parameters for the Venv1717X.

Detector

ModelVenv1717X
TypeWired flat panel detector
Detector technologyAmorphous silicon (a-Si)
ScintillatorCsI
Active area427 x 427 mm
Pixel matrix3072 x 3072
Pixel pitch139 um
Spatial resolution3.6 lp/mm
AD conversion16 bit

Interface and imaging

Data transmissionGigE
Trigger modeAED (optional) / software / prep
Preview image time3 s
Full image time5 s
Power dissipation30 W

Mechanical and environment

Dimensions460 x 460 x 15 mm
Weight4 kg
Operating temperature5 - 35 °C
Storage and transport temperature-10 - 55 °C (with package)
Operating humidity30 - 80 % RH (non-condensing)
Storage and transport humidity10 - 90 % RH (non-condensing, with package)
Confirm before order

Final specifications, options and regulatory scope must be confirmed against the quotation and destination market.
