Wireless positioning
Cable-free detector placement for flexible exam setups.

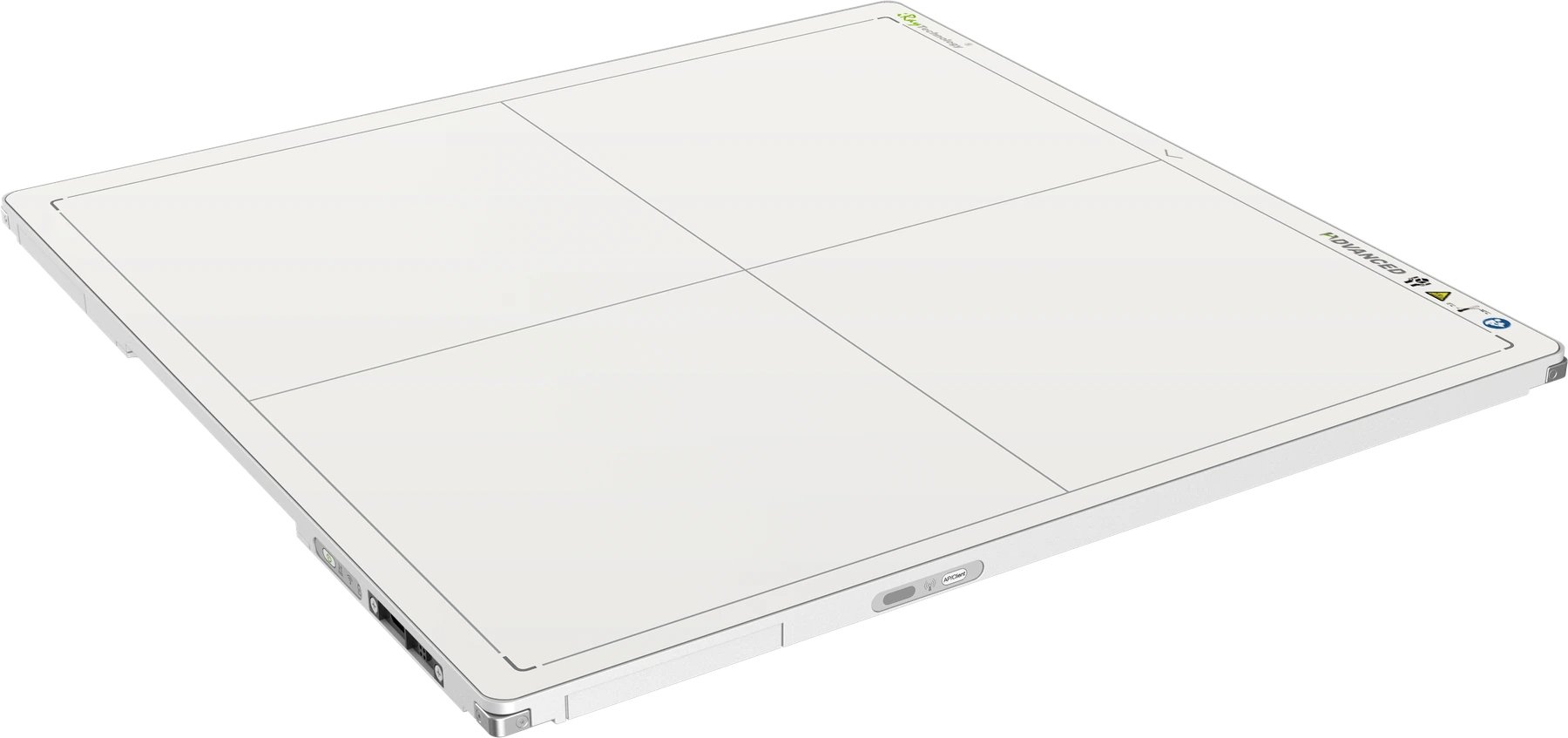

A wireless 17 x 17 flat panel detector family with a clean housing, top controls and status indicators for DR and mobile imaging workflows.
Confirm wireless interface, software, battery charging and host-system compatibility before order.

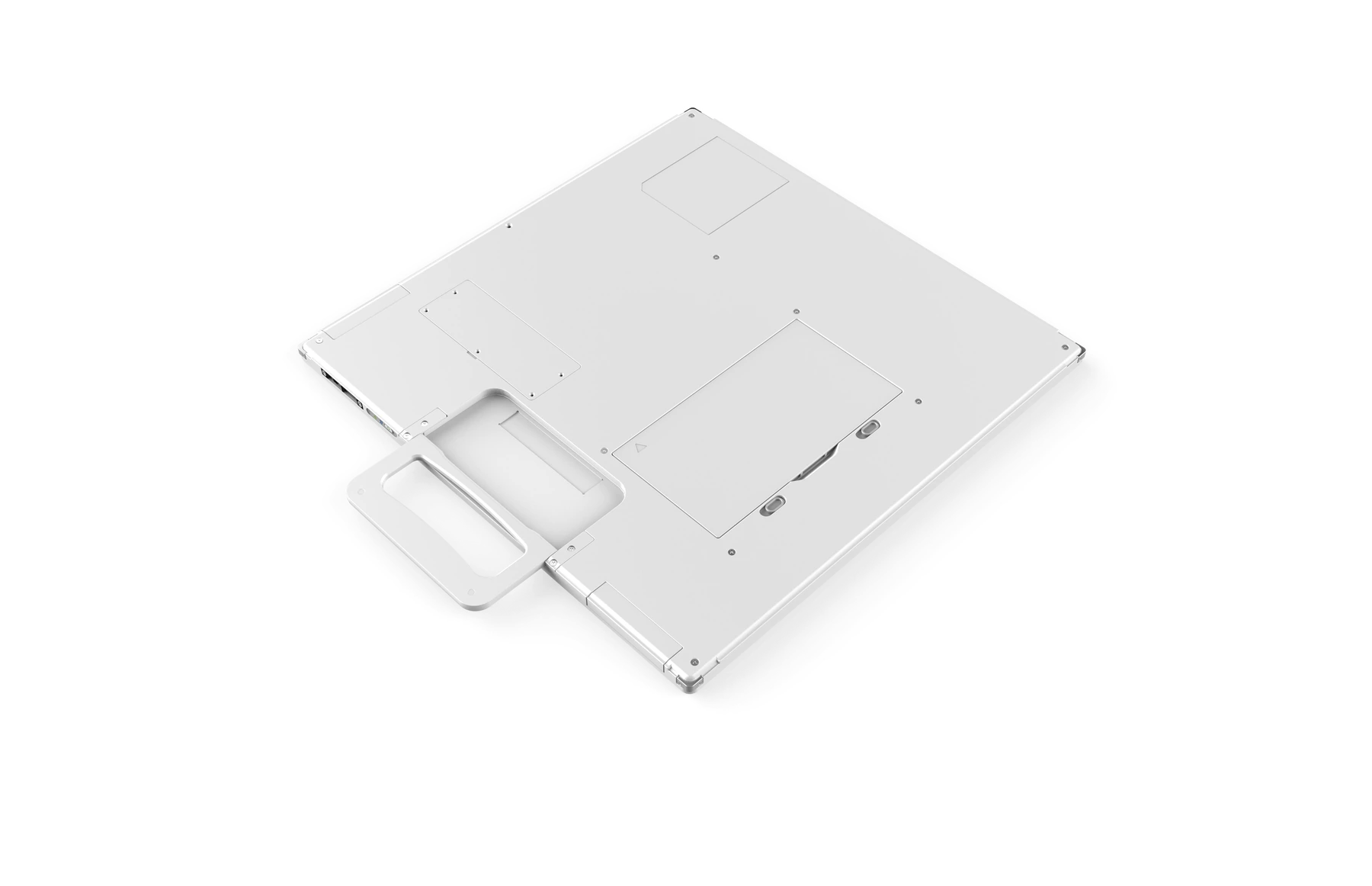

The supplied images show the panel, rear controls and an imaging example.



Final compatibility depends on the host system and acquisition software.
Cable-free detector placement for flexible exam setups.
Top controls and status indication are visible on the housing.
139 um pixel pitch and 3.6 lp/mm spatial resolution.
Battery autonomy of about five hours supports wireless rounds.
Key detector, wireless, mechanical and environmental parameters for the Mars 1717V.
| Model | Mars 1717V |
|---|---|
| Type | Wireless flat panel detector |
| Detector technology | Amorphous silicon (a-Si) |
| Scintillator | CsI |
| Active area | 427 x 427 mm |
| Pixel matrix | 3072 x 3072 |
| Pixel pitch | 139 um |
| Spatial resolution | 3.6 lp/mm |
| AD conversion | 16 bit |
| Wireless | 2.4 GHz and 5 GHz, IEEE 802.11 a/b/g/n/ac |
|---|---|
| Trigger mode | AED (optional) / software |
| Full image time | Typ. 5 s |
| Battery autonomy | 5 h |
| Dimensions | 460 x 460 x 15 mm |
|---|---|
| Weight | 4.6 kg |
| Static loading | 150 kg, uniformly distributed |
| Ingress protection | IPX1 |
| Operating temperature | 5 - 35 °C |
| Storage and transport temperature | -20 - 55 °C (with package) |
| Operating humidity | 10 - 90 % RH (non-condensing) |
| Storage and transport humidity | 5 - 95 % RH (non-condensing, with package) |
Final specifications, options and regulatory scope must be confirmed against the quotation and destination market.
